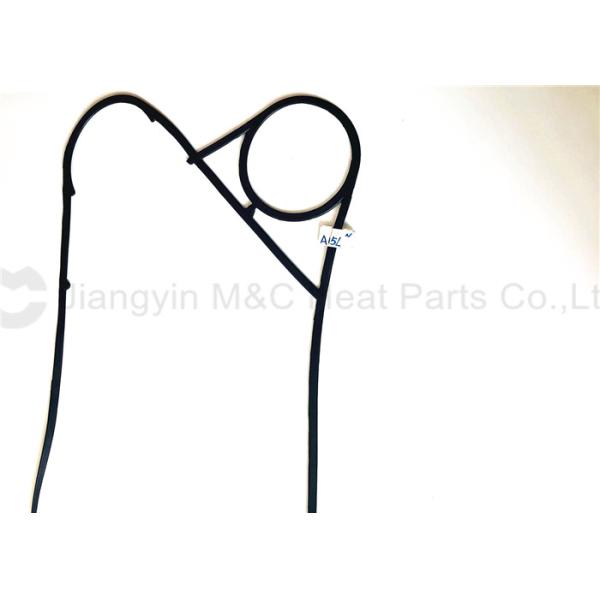

Heat Resistant Custom Silicone Gaskets ,V85 Rubber Seals And Gaskets For Maritime Sector

Brand Name : M&C

Model Number : V85

Certification : SGS FDA ISO

Place of Origin : Jiangsu China (mainland)

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000Pcs/Month

Delivery Time : 5-8 working days

Packaging Details : Standard export carton /wooden case

Product Name : Heat Resistant Custom Silicone Gaskets

Material : EPDM

Application : Machinery & Electronic

Shape : Flat Gasket

Size : centre to centre: 1470mm*380mm

Transfer Area : 0.85㎡

Contact Now

The same type of plate, the corrugation has different size of the channel and the angle, according to different system conditions, different plate combinations can be used to achieve the best performance.

Product Description


Plate heat exchanger is consist of corrugate heat transfer plate,according to a certain interval,composed of gasket pressed removable heat transfer equipment. When plate assembly,the two groups alternately arranged between the plate with a sealing pad to prevent fluid leakage and the formation of narrow network between the two channels. Why the plate has a variety of corrugated? It is to increase the heat transfer plate area and rigidity,and can make the fluid flow at low turbulence,in order to achieve the effect of enhanced heat transfer.The four hole corners of the plate,forming a fluid distribution pipe and drain pipe,two kinds of heat transfer medium flow into the respective flow through the plate for heat transfer.

Plate Material Suitable for fluid
Stainless steel (Alloy304, Alloy 316, etc.) Clean water, river water, edible oil, mineral oil
Titanium and titanium palladium (Ti, Ti-Pd) Sea water, salt water, salt
20Cr, 18Ni, 6Mo (254SM0) Dilute sulfuric acid, sparse salt solution, inorganic solution
Nickel (Ni) High temperature, high concentration caustic soda
HASTELLOY alloy (C276, D205, B2G) Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
Graphite Hydrochloric acid, medium concentration sulfuric acid, phosphoric acid, hydrofluoric acid

Seal Material Temperature Suitable for fluid
NBR -15C°to +130C° Water, seawater, mineral oil brine
NHNBR -15C°to +160C° High temperature mineral oil, high temperature water
EPDM -25C°to +180C° Hot water, steam, acid, alkali
Viton/FKM -5C°to +180C° Acid, alkali, fluid

Heat Resistant Custom Silicone Gaskets ,V85 Rubber Seals And Gaskets For Maritime Sector


Product Advantage


1,Compact design and high thermal efficiency.
2,De-mountable for cleaning and maintenance,strong flexibility.
3,A quality product ,low maintenance costs with long service life.
4,High operational safety,widely used application possbilities.
